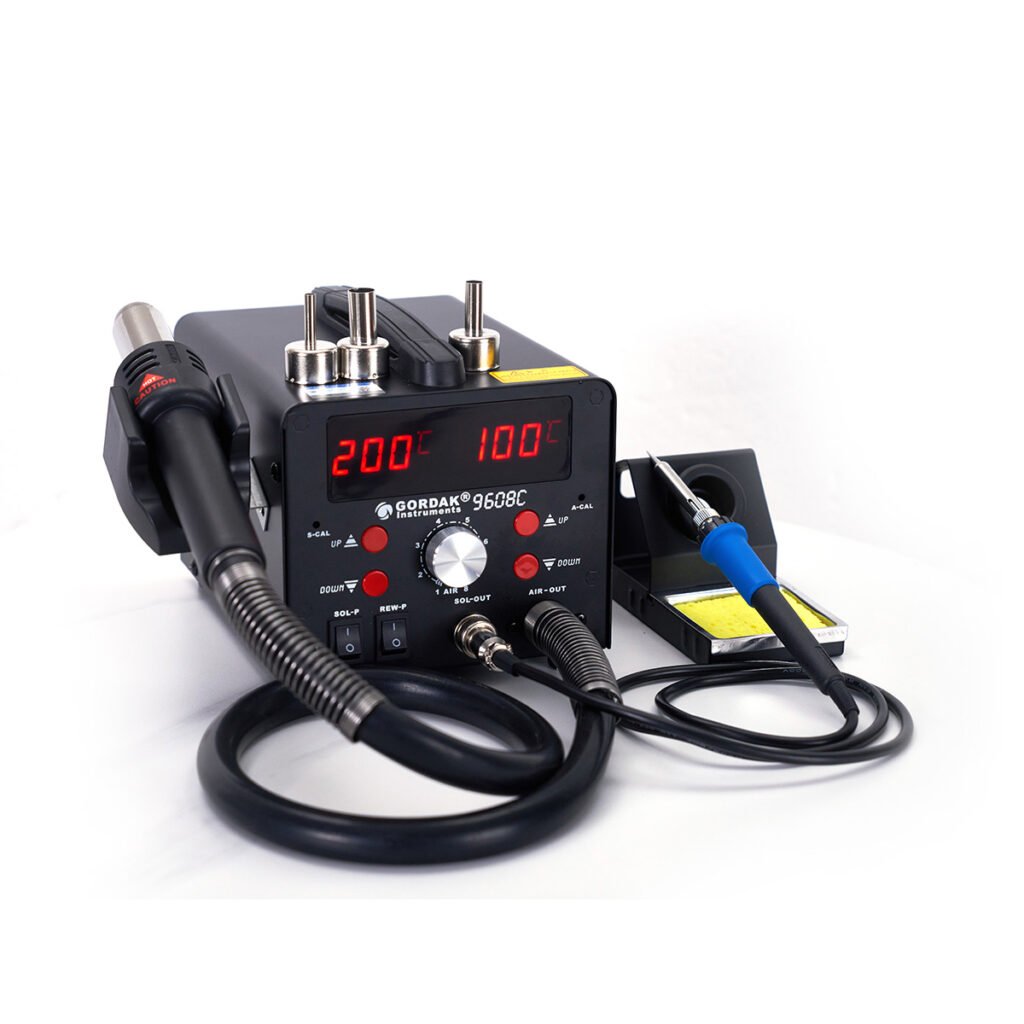

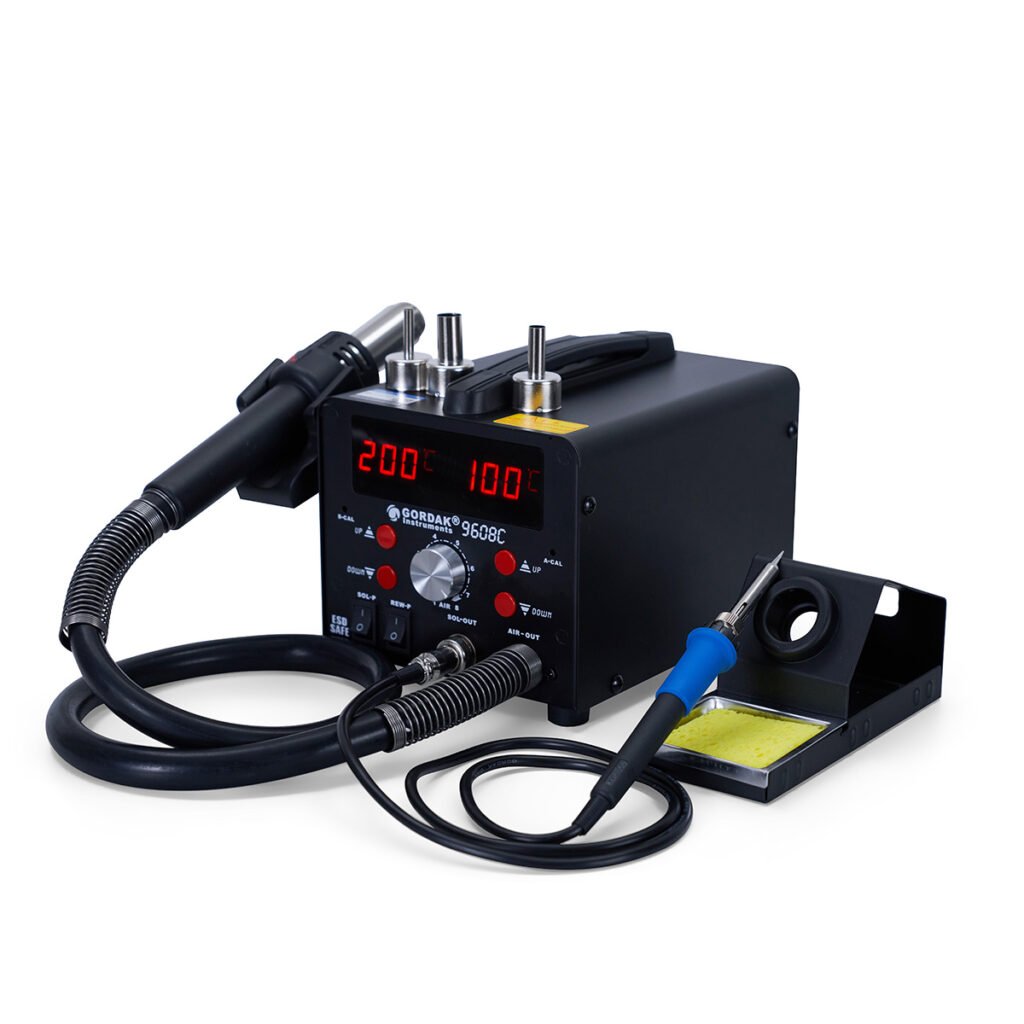

"(《世界人权宣言》) GORDAK 9608C 多功能焊接与返修工作站 is a professional all-in-one solution designed for precise electronic assembly, repair, and rework tasks. Featuring a compact main unit with a built-in 80W brushless fan, a high-power rapid-heating hot air gun, and a fast-heating soldering iron with an A1321 heating core, this station ensures quick heat-up, stable temperature control, and efficient component handling.
With independent hot air and soldering functions, intelligent PID temperature regulation, automatic cooling, and energy-saving sleep modes, the GORDAK 9608C 多功能焊接与返修工作站 provides reliable, safe, and durable performance. It is ideal for soldering and desoldering a wide range of components, including SMD, through-hole, and temperature-sensitive devices, making it an essential tool for electronics professionals and technicians.
主要功能
-
Compact main unit with built-in 80W brushless fan – The main unit features a compact enclosure with an integrated 80W brushless fan. The hot air handle is designed as a single-piece assembly. A large LED screen with button-style controls provides convenient temperature adjustment.
-
Intelligent temperature control for hot air rework – Hot air temperature range: 100–500°C, supported by an intelligent temperature control mode and an energy-saving sleep/cooling function.
-
High-power heating element for rapid heating – The hot air gun uses a high-power heating element, allowing fast heat-up and efficient removal of chips and components.
-
Automatic sleep and cooling mode – When the hot air handle is placed on its holder, the system automatically enters a cooling mode. After cooling down to 100°C, it switches to an energy-saving sleep mode.
-
Intelligent soldering temperature control – Soldering iron temperature range: 200–480°C, also operating under intelligent temperature control.
-

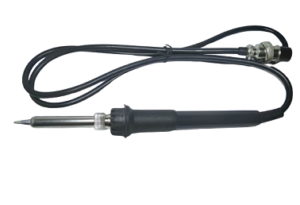

Fast-heating A1321 heating core - The soldering iron uses an A1321 heating element, providing rapid heat-up for easy and efficient desoldering.
规格
| 热气站 | |
| 额定电压 | 230 V AC, 50/60 Hz |
| 最大功耗 | 1000 W |
| 气泵类型 | Built-in 80W brushless blower |
| 气流 | 200 L/min (max) |
| 温度范围 | 100℃ - 500℃ |
| 手柄长度 | 98 cm |
| 噪音 | < 50 dB |
| 焊接站 | |
| 最大功耗 | 60 W |
| 输出电压 | 24 V AC |
| 温度范围 | 200℃ - 480℃ |
| 接地电阻 | < 2 mΩ |
| 地电位 | < 2 mV |
| 加热器 | A1321 ceramic heating element |
| 加热器电源 | 50 W |
| 包装 | 6 pcs/ctn, 55.5 × 31.5 × 54.5 cm/ctn, 24 kg/ctn |
