GORDAK 857 Hot Air Rework Station

The GORDAK 857 Hot Air Rework Station is equipped with a brushless fan, advanced PID temperature control, and a powerful heating system that ensures fast, stable, and precise hot-air output. Its ESD-safe design, intelligent sleep mode, large LCD screen, and data-memory functions make it an ideal choice for repair centers, assembly lines, and electronics technicians who require consistent reliability and efficiency.

Technical Specifications

Item	规格
模型	GORDAK 857
额定电压	230 V AC, 50/60 Hz
最大功耗	450 W
Pump Mode	Brushless fan, soft airflow
气流	120 L/min (Max)
温度范围	100°C – 500°C
噪音水平	< 45 dB
接地电阻	< 200 mΩ
地电位	< 2 mV
手柄长度	Approx. 1.2 m (with tube)
加热元件	Ceramic heater
包装	8 pcs/carton
纸箱尺寸	51 × 47.5 × 39 cm
毛重	19.5 kg/carton

主要功能

Brushless Fan Soft Airflow – The system uses a high-quality brushless fan to provide soft, stable airflow with low wind pressure—ideal for small SMD components and delicate rework tasks.
Fast Heating & Strong Power – A powerful 1000W ceramic heating element ensures rapid temperature rise and stable high-temperature output, allowing efficient IC removal and PCB rework.

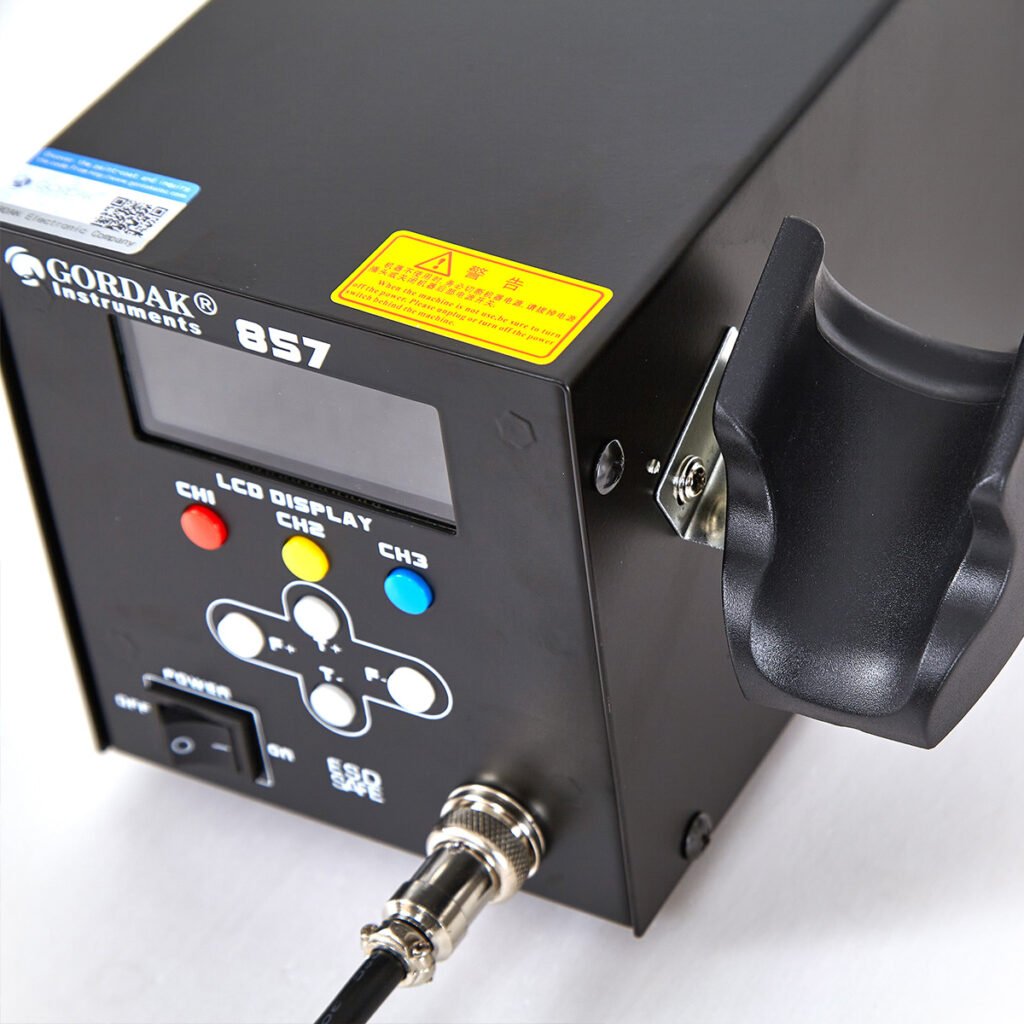

Large LCD Display & PID Control – The large LCD screen paired with a microcomputer PID temperature control algorithm delivers precise, stable temperature regulation with real-time monitoring.
Intelligent Sleep Mode – When the handle is placed on the holder, the station automatically enters a sleep state, reducing energy consumption and extending heater lifespan.
3 Memory Preset Functions – Users can store three temperature settings and recall them instantly with one button—ideal for switching between frequently used profiles.
Self-Diagnosis & Error Codes – The machine includes an automatic fault detection system that displays error codes for quick troubleshooting and service convenience.
温度校准 – Software-based temperature correction allows precise adjustments to maintain long-term accuracy.
密码保护 – A key-lock function prevents unauthorized changes to system settings, making it suitable for shared work environments.
Ergonomic Handle Design – The lightweight handle reduces hand fatigue and supports long-duration operation.

Additional Technical Advantages

Spiral Heating Core – The spiral heating structure ensures faster temperature rise and more stable high-temperature output, enhancing overall efficiency.
Full Copper Coil Transformer – Built with pure copper windings, offering strong, stable power delivery and improved durability compared to ordinary transformers.
